Drawing Interaction (QTI)

The drawing interaction allows the candidate to use a common set of drawing tools to modify a given graphical image (the canvas). It must be bound to a response variable with base-type file and single cardinality. The result is a file in the same format as the original image. The relevant class is:

DrawingInteraction

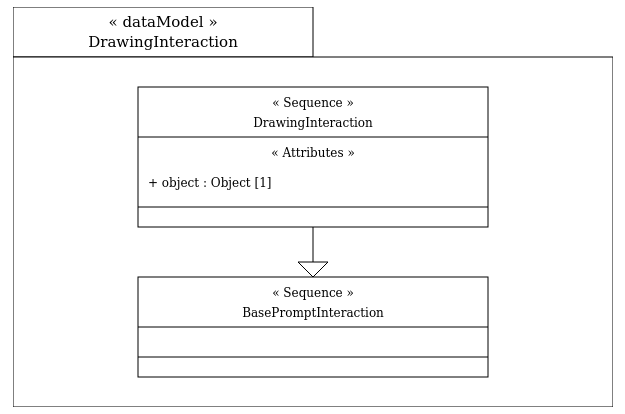

Data Model

Examples

This example illustrates the drawingInteraction. Notice that the RESPONSE is declared to be of type file. The drawing takes place on a required pre-supplied canvas, in the form of an existing image, which is also used to determine the appropriate size, resolution and image type for the candidate’s response.

<assessmentItem
    xsi:schemaLocation="http://www.imsglobal.org/xsd/imsqti_v2p2 http://www.imsglobal.org/xsd/qti/qtiv2p2/imsqti_v2p2p2.xsd"
    identifier="drawing"
    title="La casa di Giovanni"
    adaptive="false"
    timeDependent="false"
>
    <responseDeclaration
	identifier="RESPONSE"
	cardinality="single"
	baseType="file"
    />
    <outcomeDeclaration
	identifier="SCORE"
	cardinality="single"
	baseType="float"
    />
    <itemBody>
	<p>
	    Read the following description of Giovanni's house and then colour
	    the picture accordingly.
	</p>
	<drawingInteraction responseIdentifier="RESPONSE">
	    <prompt>Il tetto è rosso e i muri sono gialli.</prompt>
	    <object
		type="image/png"
		data="images/house.png"
		width="144"
		height="260"
	    />
	</drawingInteraction>
    </itemBody>
</assessmentItem>
